| Length*Width*Height | 2975mm*2285mm *1550mm |
| Total Weight | 3100kg |
| PCB Length Width | 250mm*any length |
| Mounting Precision | ±0.02mm chip |
| Mounting Speed | 500000 CPH(optimum) |
| Components Speed | 0.2mm |
| Power | 380AC 50HZ |
| Power Consumption | 7kw |
| No. of feeders | 136PCS |

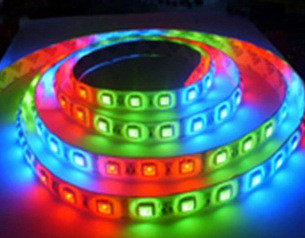

| Components | LED 3014/3020/3528/5050, resistors |

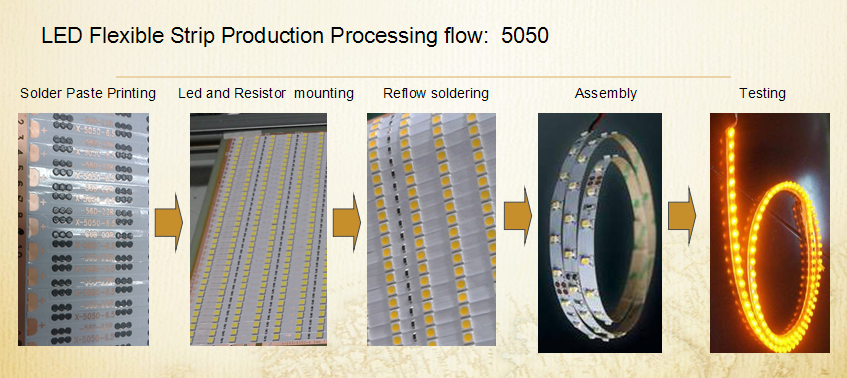

SMT Process
| Step 1 | Loader Machine | Sending the FPCB roll to printer machine |
| Step 2 | Semi-automatic Stencil Printer | Printing the solder paste on the flexible PCB |
| Step 3 | Buffer Stage | Buffer and transport the flexible PCB to pick and place machine |
| Step 4 | Pick and Place Machine | Mounting LED chips and components on flexible PCB |
| Step 5 | Transportation Belt Line | Transport the flexible PCB to reflow oven |
| Step 6 | Reflow Oven | Heating the solder paste with FPCB to welding the components on FPCB |
| Step 7 | Unloader Machine | Rewinding the finished Flexible strip |
TOP BRAND OF SMT MACHINES IN CHINA
Rich experience - over 10 years. 52000 SQM Industry Park-Strong strength Full SMT line solution expert Local installation&
training-no service worry.
50 professional R&D man- Core technology
Update software whole life time for free
Exported to more than 30 Countries and Rigions
ETON has successively reached strategic cooperation with many domestic and foreign companies. And has achieved everyone's unanimous recognition and praise. In the field of high-speed placement machines has become a leading Chinese brand.Till now we have many abroad offices and engineer, such as Indian Delhi, Indian Mumbai, Indian Daman, Egypt Cairo etc
FAQ
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
5.How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
