LED Bulb Pick And Place Machine AC380V 50Hz LED SMT Production Line 4KW

Name: LED Bulb Pick And Place Machine AC380V 50Hz LED SMT Production Line 4KW
Brand: Eton
Price: 1 USD

Brand Name : Eton

Model Number : HT-E8S

Certification : CE CCC ISO

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30 WORK DAYS

Packaging Details : WOODEN BOX PACKAGE

Length : 2550MM

Width : 1650MM

Height : 1550MM

Weight : 1700KG

Power : 380AC 50Hz

Power consumption : 4KW

Heads : 12

Feeder Stations : 28

Contact Now

Product Description

LED Bulb Pick And Place Machine AC380V 50Hz LED SMT Production Line 4KW

Machines window

High Accuracy Magnetic Linear Motor + Panasonic Servo Motor

12 heads 28 feeder stations

Minimum mounting components 0402

The Height of Head can be Set Automatically,

Maximum Height 36MM

Auto-optimization after coordinate generated

Vision for the Flight Identification, Mark Correction

Capacity can Reach 45000 CPH

Specification

Model	HT-E8S-1200
Dimension (LWH)	255016501550mm
G/W	1700 KG
PCB Length width	Max:1200500mm Min:100100mm
Power	AC 380V 50Hz
Power consumption	4KW
PCB thickness	0.5~5mm
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group to take separate placing , Separate picking and separate placing
Camera	2sets/ Vision alignment,mark correction
Mounting precision	±0.04 mm(repeat precision)
Mounting element height	≤15mm
Mounting speed	45000 CPH
Feeders Station	26 PCS
Nozzles	12PCS
Applicable camera	Chip 0402,LED,3014/3020/3528/5050 and resistor ,capacitor,bridge rectifiers

Machine application

HT-E8S-1200 is a universal model

In order to meet the rapid development of the lighting industry market demand, research and

development a multi-functional placement machine HT-E8S. HT-E8S is a new model pick and

place machine of Eton company. This machine designed for many kinds of PCB boards. Using

newest high magnetic linear motor,

so the speed and accuracy is better than normal multi-functional machines..

SMT line

What is SMT Line?

SMT is surface mount technology (short for Surface Mount Technology) and is currently the most

popular technology and process in the electronics assembly industry.

SMT includes surface mount technology, surface mount equipment, surface mount components, and

SMT management.

Features: high assembly density, small size and light weight of electronic products.

The size and weight of patch components are only about 1/10 of that of traditional plug-in components.

After SMT is generally used, the volume of electronic products is reduced by 40%~60%, and the weight

is reduced by 60%. %~80rference. Easy to automate and increase productivity.

Reduce costs by 30% to 50%. Save ma%. High reliability and strong anti-vibration ability. The solder joint

defect rate is low. High frequency characteristics are good. Reduced electromagnetic and radio frequency

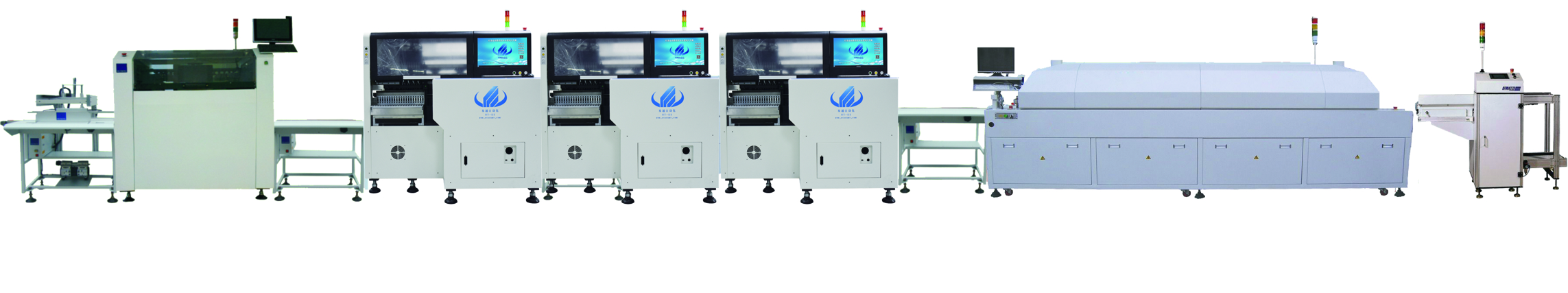

inteterials, energy, equipment, manpower, time, etc. A whole full-automatic SMT line include loader,

full-automatic printer, conveyor, pick and place machine and reflow oven, unloader.

Company profile

Company short introduction

Shenzhen Eton Automation Equipment Co., Ltd focus on building national brand and concentrate

on providing customers professional guidance, good quality machines, good sale services of

automatic SMT machines. With the rapid development of the LED industry.

ETON focuses on R&D and continuously enhances the competitiveness of its placement machines.

Now we have successively reached
strategic cooperation with many domestic and foreign companies. And has achieved everyone's

unanimous recognition and praise. In the field of high-speed placement machines has become a

leading Chinese brand.

Customer Photos

FAQ

1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support

you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to

your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many

technology patents, and have rich experience(more than 10 years) in LED light production line

program.
5) What’s the term of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
